Centor A6 Open Rail

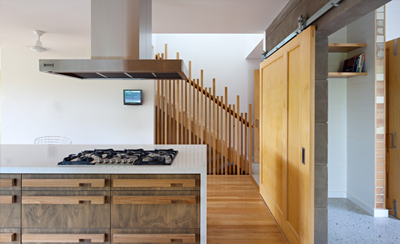

A6’s classic open-rail design provides a rugged industrial look high on aesthetic appeal as well as

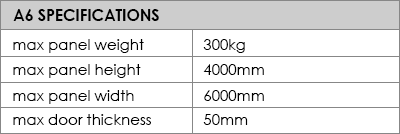

robust functionality. Fully exposed track and 75mm diameter grooved steel wheels give Centor A6 a rugged industrial look, with the classic open rail design widely specified as much for its aesthetic appeal as it’s robust functionality. Handling door panel weights up to 300 kilograms and dimensions as large as four by six metres with no diminution in performance from the precision ground bearings, A6 is serious hardware that doesn’t mind taking its share of the spotlight!
Tracking
A6 carrier wheels run on lengths of tailor made 50mm x 6mm mild steel bar available with bright zinc plated finish, powdercoat, satin or bright chrome. Lengths up to six metres are produced in one piece while a bolted splice joins sections together for a longer rail. Side fixing holes are predrilled and safety stops at both ends of the track are standard.
Carriers
A6 carriers are available with the option of fastening to the top or the side of the door panel. In general panels over three metres wide will require three carriers for additional lateral support. The middle carrier should be positioned high so as to avoid it bearing any load.
